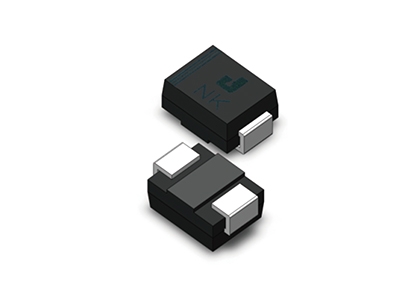

SMBJ系列TVS二极管
SMBJ系列TVS二极管专为保护敏感电子设备免受雷击或其他瞬态电压事件引起的电压瞬变而设计。
- 品牌： 集电通/JDTFUSE
- 分类： TVS二极管
- 最大电压： 3~550V
- 额定电流： ~

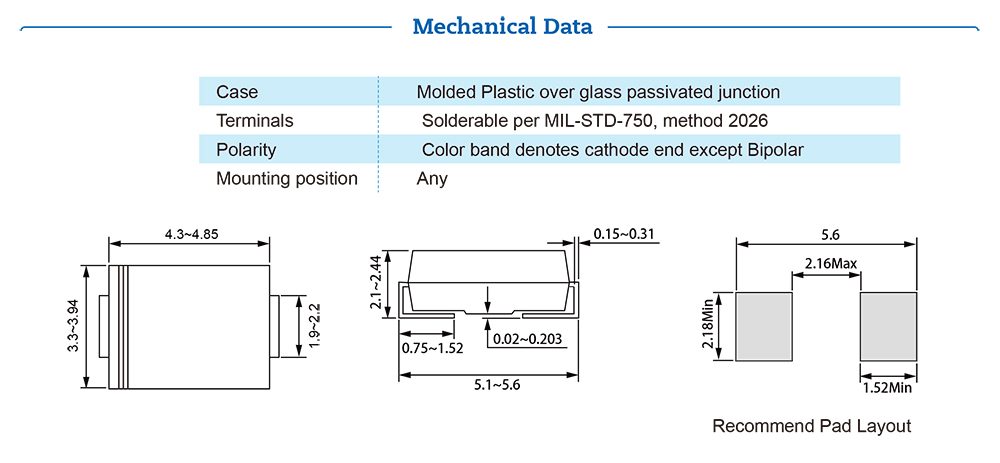

SMBJ二极管规格书
Model | Reverse Stand off Voltage VR | Breakdown Voltage VBR @ IT | Test Current IT | Clamping Voltage VC @ Ipp | Peak Pulse Current Ipp (A) | Reverse Leakage IR @ VR | Marking | |||
(Uni) | (Bi) | (V) | Min(V) | Max(V) | (mA) | Max(V) | Max(A) | Max(μA) | Uni. | Bi. |
SMBJ3.3A | SMBJ3.3CA | 3.0 | 4.20 | 6.55 | 1 | 8.7 | 69.1 | 150 | KC | AC |
SMBJ5.0A | SMBJ5.0CA | 5.0 | 6.40 | 7.00 | 10 | 9.2 | 65.2 | 120 | KE | AE |
SMBJ6.0A | SMBJ6.0CA | 6.0 | 6.67 | 7.37 | 10 | 10.3 | 58.3 | 120 | KG | AG |
SMBJ6.5A | SMBJ6.5CA | 6.5 | 7.22 | 7.98 | 10 | 11.2 | 53.6 | 120 | KK | AK |
SMBJ7.0A | SMBJ7.0CA | 7.0 | 7.78 | 8.60 | 10 | 12.0 | 50.0 | 50 | KM | AM |
SMBJ7.5A | SMBJ7.5CA | 7.5 | 8.33 | 9.21 | 1 | 12.9 | 46.5 | 50 | KP | AP |
SMBJ8.0A | SMBJ8.0CA | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 44.1 | 20 | KR | AR |
SMBJ8.5A | SMBJ8.5CA | 8.5 | 9.44 | 10.4 | 1 | 14.4 | 41.7 | 10 | KT | AT |
SMBJ9.0A | SMBJ9.0CA | 9.0 | 10.0 | 11.1 | 1 | 15.4 | 39.0 | 5 | KV | AV |
SMBJ10A | SMBJ10CA | 10 | 11.1 | 12.3 | 1 | 17.0 | 35.3 | 2 | KX | AX |
SMBJ11A | SMBJ11CA | 11 | 12.2 | 13.5 | 1 | 18.2 | 33.0 | 1 | KZ | AZ |
SMBJ12A | SMBJ12CA | 12 | 13.3 | 14.7 | 1 | 19.9 | 30.2 | 1 | LE | BE |
SMBJ13A | SMBJ13CA | 13 | 14.4 | 15.9 | 1 | 21.5 | 27.9 | 1 | LG | BG |
SMBJ14A | SMBJ14CA | 14 | 15.6 | 17.2 | 1 | 23.2 | 25.9 | 1 | LK | BK |
SMBJ15A | SMBJ15CA | 15 | 16.7 | 18.5 | 1 | 24.4 | 24.6 | 1 | LM | BM |
SMBJ16A | SMBJ16CA | 16 | 17.8 | 19.7 | 1 | 26.0 | 23.1 | 1 | LP | BP |
SMBJ17A | SMBJ17CA | 17 | 18.9 | 20.9 | 1 | 27.6 | 21.8 | 1 | LR | BR |
SMBJ18A | SMBJ18CA | 18 | 20.0 | 22.1 | 1 | 29.2 | 20.6 | 1 | LT | BT |
SMBJ20A | SMBJ20CA | 20 | 22.2 | 24.5 | 1 | 32.4 | 18.6 | 1 | LV | BV |
SMBJ22A | SMBJ22CA | 22 | 24.4 | 26.9 | 1 | 35.5 | 16.9 | 1 | LX | BX |
SMBJ24A | SMBJ24CA | 24 | 26.7 | 29.5 | 1 | 38.9 | 15.4 | 1 | LZ | BZ |
SMBJ26A | SMBJ26CA | 26 | 28.9 | 31.9 | 1 | 42.1 | 14.3 | 1 | ME | CE |
SMBJ28A | SMBJ28CA | 28 | 31.1 | 34.4 | 1 | 45.4 | 13.2 | 1 | MG | CG |
SMBJ30A | SMBJ30CA | 30 | 33.3 | 36.8 | 1 | 48.4 | 12.4 | 1 | MK | CK |
SMBJ33A | SMBJ33CA | 33 | 36.7 | 40.6 | 1 | 53.3 | 11.3 | 1 | MM | CM |
SMBJ36A | SMBJ36CA | 36 | 40.0 | 44.2 | 1 | 58.1 | 10.4 | 1 | MP | CP |
SMBJ40A | SMBJ40CA | 40 | 44.4 | 49.1 | 1 | 64.5 | 9.3 | 1 | MR | CR |
SMBJ43A | SMBJ43CA | 43 | 47.8 | 52.8 | 1 | 69.4 | 8.7 | 1 | MT | CT |
SMBJ45A | SMBJ45CA | 45 | 50.0 | 55.3 | 1 | 72.7 | 8.3 | 1 | MV | CV |
SMBJ48A | SMBJ48CA | 48 | 53.3 | 58.9 | 1 | 77.4 | 7.8 | 1 | MX | CX |
SMBJ51A | SMBJ51CA | 51 | 56.7 | 62.7 | 1 | 82.4 | 7.3 | 1 | MZ | CZ |
SMBJ54A | SMBJ54CA | 54 | 60.0 | 66.3 | 1 | 87.1 | 6.9 | 1 | NE | DE |
SMBJ58A | SMBJ58CA | 58 | 64.4 | 71.2 | 1 | 93.6 | 6.4 | 1 | NG | DG |
SMBJ60A | SMBJ60CA | 60 | 66.7 | 73.7 | 1 | 96.8 | 6.2 | 1 | NK | DK |
SMBJ64A | SMBJ64CA | 64 | 71.1 | 78.6 | 1 | 103 | 5.8 | 1 | NM | DM |
SMBJ70A | SMBJ70CA | 70 | 77.8 | 86.0 | 1 | 113 | 5.3 | 1 | NP | DP |
SMBJ75A | SMBJ75CA | 75 | 83.3 | 92.1 | 1 | 121 | 5.0 | 1 | NR | DR |
SMBJ78A | SMBJ78CA | 78 | 86.7 | 95.8 | 1 | 126 | 4.8 | 1 | NT | DT |
SMBJ85A | SMBJ85CA | 85 | 94.4 | 104 | 1 | 137 | 4.4 | 1 | NV | DV |
SMBJ90A | SMBJ90CA | 90 | 100 | 111 | 1 | 146 | 4.1 | 1 | NX | DX |
SMBJ100A | SMBJ100CA | 100 | 111 | 123 | 1 | 162 | 3.7 | 1 | NZ | DZ |
SMBJ110A | SMBJ110CA | 110 | 122 | 135 | 1 | 177 | 3.4 | 1 | PE | EE |
SMBJ120A | SMBJ120CA | 120 | 133 | 147 | 1 | 193 | 3.1 | 1 | PG | EG |
SMBJ130A | SMBJ130CA | 130 | 144 | 159 | 1 | 209 | 2.9 | 1 | PK | EK |
SMBJ150A | SMBJ150CA | 150 | 167 | 185 | 1 | 243 | 2.5 | 1 | PM | EM |
SMBJ160A | SMBJ160CA | 160 | 178 | 197 | 1 | 259 | 2.3 | 1 | PP | EP |
SMBJ170A | SMBJ170CA | 170 | 189 | 209 | 1 | 275 | 2.2 | 1 | PR | ER |
SMBJ180A | SMBJ180CA | 180 | 201 | 222 | 1 | 292 | 2.1 | 1 | PT | ET |
SMBJ190A | SMBJ190CA | 190 | 211 | 234 | 1 | 307 | 2.0 | 1 | PB | EB |
SMBJ200A | SMBJ200CA | 200 | 224 | 247 | 1 | 324 | 1.9 | 1 | PV | EV |
SMBJ210A | SMBJ210CA | 210 | 233 | 258 | 1 | 337 | 1.8 | 1 | PW | EW |
SMBJ220A | SMBJ220CA | 220 | 246 | 272 | 1 | 356 | 1.7 | 1 | PX | EX |
SMBJ250A | SMBJ250CA | 250 | 279 | 309 | 1 | 405 | 1.5 | 1 | PZ | EZ |
SMBJ300A | SMBJ300CA | 300 | 335 | 371 | 1 | 486 | 1.3 | 1 | QE | FE |
SMBJ350A | SMBJ350CA | 350 | 391 | 432 | 1 | 567 | 1.1 | 1 | QG | FG |
SMBJ400A | SMBJ400CA | 400 | 447 | 494 | 1 | 648 | 0.9 | 1 | QK | FK |
SMBJ440A | SMBJ440CA | 440 | 492 | 543 | 1 | 713 | 0.8 | 1 | QM | FM |
SMBJ550A | SMBJ550CA | 550 | 611 | 679 | 1 | 1000 | 0.6 | 1 | QP | FP |
