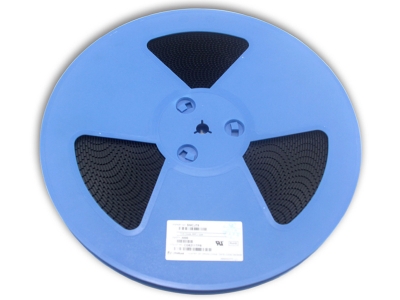

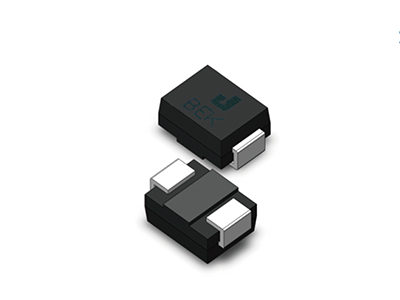

SMCJ系列TVS二极管
SMCJ系列TVS二极管专为保护敏感电子设备免受雷击或其他瞬态电压事件引起的电压瞬变而设计。
- 品牌： 集电通/JDTFUSE
- 分类： TVS二极管
- 最大电压： 5~510V
- 额定电流： ~

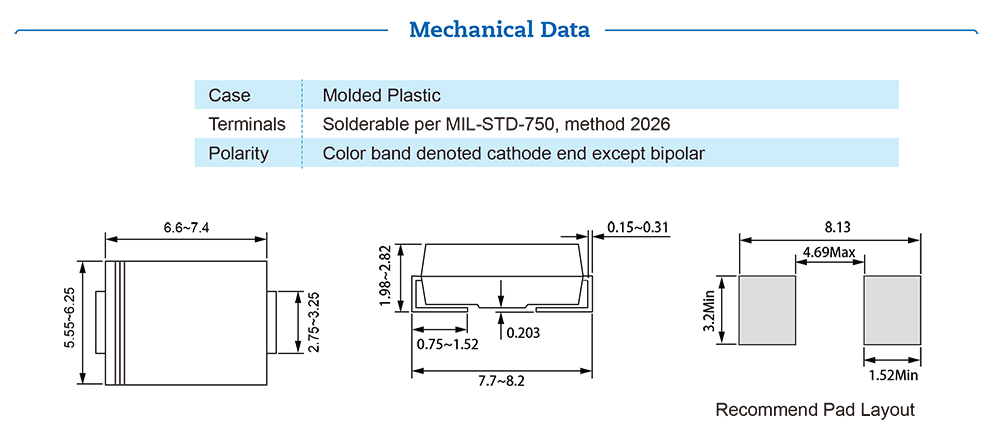

SMCJ二极管规格书
Model | Reverse Stand off Voltage VR | Breakdown Voltage VBR @ IT | Test Current IT | Clamping Voltage VC @ Ipp | Peak Pulse Current Ipp (A) | Reverse Leakage IR @ VR | Marking | |||
(Uni) | (Bi) | (V) | Min(V) | Max(V) | (mA) | Max(V) | Max(A) | Max(μA) | Uni. | Bi. |
SMCJ5.0A | SMCJ5.0CA | 5.0 | 6.40 | 7.00 | 10 | 9.2 | 163.0 | 300 | GDE | BDE |
SMCJ6.0A | SMCJ6.0CA | 6.0 | 6.67 | 7.37 | 10 | 10.3 | 145.6 | 250 | GDG | BDG |
SMCJ6.5A | SMCJ6.5CA | 6.5 | 7.22 | 7.98 | 10 | 11.2 | 134.0 | 150 | GDK | BDK |
SMCJ7.0A | SMCJ7.0CA | 7.0 | 7.78 | 8.60 | 10 | 12.0 | 125.0 | 100 | GDM | BDM |
SMCJ7.5A | SMCJ7.5CA | 7.5 | 8.33 | 9.21 | 1 | 12.9 | 116.3 | 50 | GDP | BDP |
SMCJ8.0A | SMCJ8.0CA | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 110.3 | 30 | GDR | BDR |
SMCJ8.5A | SMCJ8.5CA | 8.5 | 9.44 | 10.4 | 1 | 14.4 | 104.2 | 20 | GDT | BDT |
SMCJ9.0A | SMCJ9.0CA | 9.0 | 10.0 | 11.1 | 1 | 15.4 | 97.4 | 10 | GDV | BDV |
SMCJ10A | SMCJ10CA | 10 | 11.1 | 12.3 | 1 | 17.0 | 88.2 | 5 | GDX | BDX |
SMCJ11A | SMCJ11CA | 11 | 12.2 | 13.5 | 1 | 18.2 | 82.4 | 2 | GDZ | BDZ |
SMCJ12A | SMCJ12CA | 12 | 13.3 | 14.7 | 1 | 19.9 | 75.4 | 1 | GEE | BEE |
SMCJ13A | SMCJ13CA | 13 | 14.4 | 15.9 | 1 | 21.5 | 69.8 | 1 | GEG | BEG |
SMCJ14A | SMCJ14CA | 14 | 15.6 | 17.2 | 1 | 23.2 | 64.7 | 1 | GEK | BEK |
SMCJ15A | SMCJ15CA | 15 | 16.7 | 18.5 | 1 | 24.4 | 61.5 | 1 | GEM | BEM |
SMCJ16A | SMCJ16CA | 16 | 17.8 | 19.7 | 1 | 26.0 | 57.7 | 1 | GEP | BEP |
SMCJ17A | SMCJ17CA | 17 | 18.9 | 20.9 | 1 | 27.6 | 54.4 | 1 | GER | BER |
SMCJ18A | SMCJ18CA | 18 | 20.0 | 22.1 | 1 | 29.2 | 51.4 | 1 | GET | BET |
SMCJ20A | SMCJ20CA | 20 | 22.2 | 24.5 | 1 | 32.4 | 46.3 | 1 | GEV | BEV |
SMCJ22A | SMCJ22CA | 22 | 24.4 | 26.9 | 1 | 35.5 | 42.3 | 1 | GEX | BEX |
SMCJ24A | SMCJ24CA | 24 | 26.7 | 29.5 | 1 | 38.9 | 38.6 | 1 | GEZ | BEZ |
SMCJ26A | SMCJ26CA | 26 | 28.9 | 31.9 | 1 | 42.1 | 35.6 | 1 | GFE | BFE |
SMCJ28A | SMCJ28CA | 28 | 31.1 | 34.4 | 1 | 45.4 | 33.1 | 1 | GFG | BFG |
SMCJ30A | SMCJ30CA | 30 | 33.3 | 36.8 | 1 | 48.4 | 31.0 | 1 | GFK | BFK |
SMCJ33A | SMCJ33CA | 33 | 36.7 | 40.6 | 1 | 53.3 | 28.2 | 1 | GFM | BFM |
SMCJ36A | SMCJ36CA | 36 | 40.0 | 44.2 | 1 | 58.1 | 25.8 | 1 | GFP | BFP |
SMCJ40A | SMCJ40CA | 40 | 44.4 | 49.1 | 1 | 64.5 | 23.3 | 1 | GFR | BFR |
SMCJ43A | SMCJ43CA | 43 | 47.8 | 52.8 | 1 | 69.4 | 21.6 | 1 | GFT | BFT |
SMCJ45A | SMCJ45CA | 45 | 50.0 | 55.3 | 1 | 72.7 | 20.6 | 1 | GFV | BFV |
SMCJ48A | SMCJ48CA | 48 | 53.3 | 58.9 | 1 | 77.4 | 19.4 | 1 | GFX | BFX |
SMCJ51A | SMCJ51CA | 51 | 56.7 | 62.7 | 1 | 82.4 | 18.2 | 1 | GFZ | BFZ |
SMCJ54A | SMCJ54CA | 54 | 60.0 | 66.3 | 1 | 87.1 | 17.2 | 1 | GGE | BGE |
SMCJ58A | SMCJ58CA | 58 | 64.4 | 71.2 | 1 | 93.6 | 16.1 | 1 | GGG | BGG |
SMCJ60A | SMCJ60CA | 60 | 66.7 | 73.7 | 1 | 96.8 | 15.5 | 1 | GGK | BGK |
SMCJ64A | SMCJ64CA | 64 | 71.1 | 78.6 | 1 | 103 | 14.6 | 1 | GGM | BGM |
SMCJ70A | SMCJ70CA | 70 | 77.8 | 86.0 | 1 | 113 | 13.3 | 1 | GGP | BGP |
SMCJ75A | SMCJ75CA | 75 | 83.3 | 92.1 | 1 | 121 | 12.4 | 1 | GGR | BGR |
SMCJ78A | SMCJ78CA | 78 | 86.7 | 95.8 | 1 | 126 | 11.9 | 1 | GGT | BGT |
SMCJ85A | SMCJ85CA | 85 | 94.4 | 104 | 1 | 137 | 11.0 | 1 | GGV | BGV |
SMCJ90A | SMCJ90CA | 90 | 100 | 111 | 1 | 146 | 10.3 | 1 | GGX | BGX |
SMCJ100A | SMCJ100CA | 100 | 111 | 123 | 1 | 162 | 9.3 | 1 | GGZ | BGZ |
SMCJ110A | SMCJ110CA | 110 | 122 | 135 | 1 | 177 | 8.5 | 1 | GHE | BHE |
SMCJ120A | SMCJ120CA | 120 | 133 | 147 | 1 | 193 | 7.8 | 1 | GHG | BHG |
SMCJ130A | SMCJ130CA | 130 | 144 | 159 | 1 | 209 | 7.2 | 1 | GHK | BHK |
SMCJ150A | SMCJ150CA | 150 | 167 | 185 | 1 | 243 | 6.2 | 1 | GHM | BHM |
SMCJ160A | SMCJ160CA | 160 | 178 | 197 | 1 | 259 | 5.8 | 1 | GHP | BHP |
SMCJ170A | SMCJ170CA | 170 | 189 | 209 | 1 | 275 | 5.5 | 1 | GHR | BHR |
SMCJ180A | SMCJ180CA | 180 | 201 | 222 | 1 | 292 | 5.2 | 1 | GHT | BHT |
SMCJ190A | SMCJ190CA | 190 | 211 | 234 | 1 | 307 | 4.9 | 1 | GHB | BHB |
SMCJ200A | SMCJ200CA | 200 | 224 | 247 | 1 | 324 | 4.7 | 1 | GHV | BHV |
SMCJ210A | SMCJ210CA | 210 | 233 | 258 | 1 | 337 | 4.5 | 1 | GHW | BHW |
SMCJ220A | SMCJ220CA | 220 | 246 | 272 | 1 | 356 | 4.2 | 1 | GHX | BHX |
SMCJ250A | SMCJ250CA | 250 | 279 | 309 | 1 | 405 | 3.7 | 1 | GHZ | BHZ |
SMCJ300A | SMCJ300CA | 300 | 335 | 371 | 1 | 486 | 3.1 | 1 | GJE | BJE |
SMCJ350A | SMCJ350CA | 350 | 391 | 432 | 1 | 567 | 2.7 | 1 | GJG | BJG |
SMCJ400A | SMCJ400CA | 400 | 447 | 494 | 1 | 648 | 2.3 | 1 | GJK | BJK |
SMCJ440A | SMCJ440CA | 440 | 492 | 543 | 1 | 713 | 2.1 | 1 | GJM | BJM |
SMCJ510A | SMCJ510CA | 510 | 570 | 640.5 | 1 | 833.4 | 1.8 | 1 | GJP | BJP |
